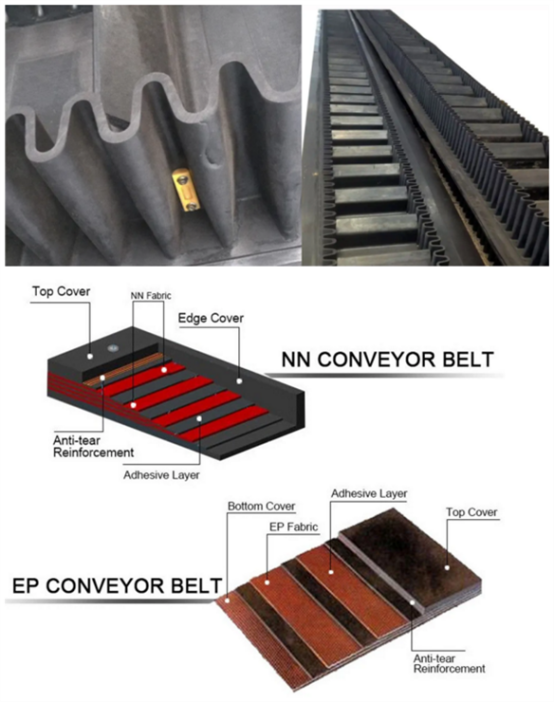

Side-Wall Corrugated Wave Conveyor Belt for Bucket Elevator

Feature
Side-wall corrugated wave conveyor belt is often used to prevent the scattering of conveyed materials, due to the space limitation of the space or in case of the lifting materials at large slope. I can convey the materials at a large slope from 0 degree to 90 degrees.
1. Materials can be conveyed at a large slope
2. The belt has a large loading capacity and the materials won't be scattered.
3. The slope of conveying can be adjusted from horizontal to sloping.
4. The conveyor is simple in structure, flexible in arrangement, and occupying only a very small area.

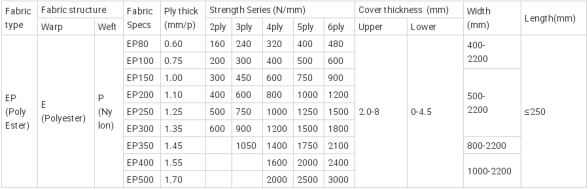

The client can select the following canvas materials: cotton, nylon, or polyester, according to your requirement.

Cover properties of the belt

Cover grade	Tensile strength >=		Elongation >=	Abrasive >=	Tensile strength and elongation after aging
Heavy (H)	18Mpa	180Kg/cm3	400%	0.7cm3/1.61km	-25-+25
Medium (M)	14Mpa	140Kg/cm3	350%	0.8cm3/1.61km	-25-+25
Light (L)	10Mpa	100Kg/cm3	300%	1.0cm3/1.61km	-30-+30
