Salient Features
• Each Pulley is designed according to position in conveyor, considering all tension parameters.
• Pulleys are statically balanced.
• All components are standardised and compatible, hence less cost.
Design Construction

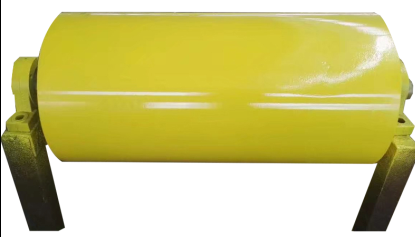

• Welded steel pulleys are of drum type, with rim, end disc and hubs designed to give maximum strength with reasonable weight.
• Solid end disc construction, with minimum rim overhang, prevents accumulation of material.
• Smooth pulley surface provide maximum belt protection.
• Hubs and end disc are accurately machined to assure concentricity.
• Pulleys are available with straight or crowned face.
• Pulley shaft are made from carbon steel/EN-8 and are designed for torque and bending moment.
• Normally shafts are keyed in hub. However, taper lock bushing for ease of maintenance can be provided.
• Shafts are welded to pulley hub in case of light duty.
