Product property
Chevron (patterned) conveyor belt is composed of belt carcass and pattern. The shape and height (dept) of patterns is subject to the material it conveys and the angle of the machine. On the surface of the belt there is a part higher than the belt body.

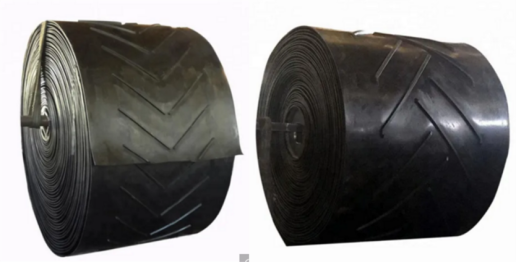

Opened V/Y type chevron belt means that its pattern looks like V letter, but it is opened.  You can see its picture as above.

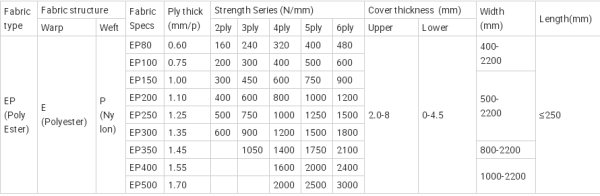

Fabric Material and Rubber Cover

Cover properties of the belt

Uses
Chevron (patterned) conveyor belt mainly conveys powder, granulated, and small lump materials at the inclination of no more than 40º. It can also convey packaged material.
