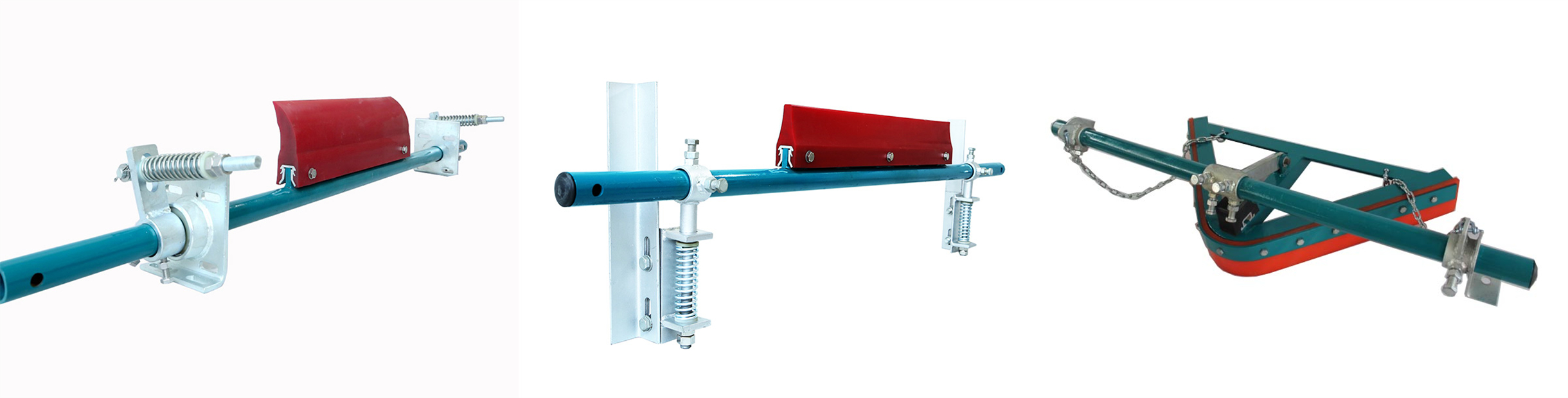

Heavy Duty Belt Cleaner Scrapers

Belt Cleaners , Belt Scrapers

Construction features:

1 The blade is made of polyurethane:anti-abrasion,anti-corrosion,anti-fracture,anti-hydrolysis,no damage to the belt, lengthen service life of belt.

2. Self-adjusting spring tensioners make sure consistent pressure and effective cleaning. When the blade wears or belt jumps, the scraper will follow up automatically to ensure good contact.

Function of Conveyor Belt Cleaners:

1. Belt Cleaner system makes conveyor systems cleaner, safer, longer life time, and more productive. With belt cleaners, minimalized carry-back results in...

2. Improved maintenance planning and conveyor availability as emergency outages, unscheduled downtime and "hurry-up" repairs are reduced.

3. Reduced maintenance expenses by lower labor costs for fewer and faster service procedures. Improved manpower utilization by fewer belt tracking and material cleanup chores.

4. Maximized equipment life by fewer replacements of prematurely worn components damaged by fugitive material and buildup.

5. Improved working conditions and plant safety and movable by better housekeeping.

6. Improved community relations and regulatory compliance by reducing environmental pollution.

Application:

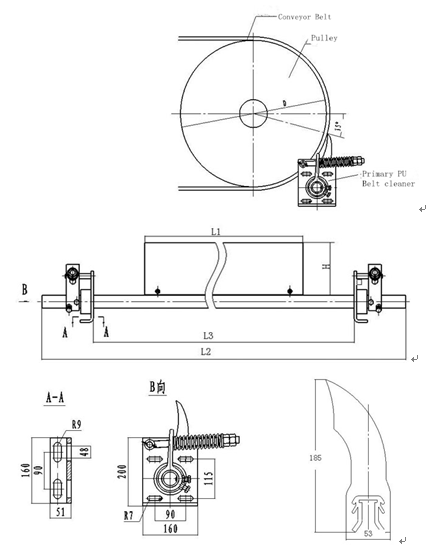

Primary polyurethane belt cleaner is installed on the head pulley.

1 Applied Belt width：500～2000(mm)

2 Belt speed：≤3.5(m/s) for light duty , ≥3.5m/s for Heavy Duty

3 Material humidity：≤15%

4 Working Temperature： -40 ℃～90 ℃

Product NO	Model	Belt Width (mm)	L1	L2	H
DB-HPU50	Primary polyurethane belt cleaner	18’’(450)	400	48’’(1912)	250
DB-HPU65	Primary polyurethane belt cleaner	24’’(600)	500	54’’(1372)	250
DB-HPU80	Primary polyurethane belt cleaner	30’’(750)	600	60’’(1524)	250
DB-HPU100	Primary polyurethane belt cleaner	36’’(900)	800	66’’(1676)	250
DB-HPU120	Primary polyurethane belt cleaner	42’’(1050)	1000	72’’(1829)	250
DB-HPU140	Primary polyurethane belt cleaner	48’’(1200)	1200	78’’(1981)	250
DB-HPU160	Primary polyurethane belt cleaner	54’’(1350)	1400	84’’(2134)	250
DB-HPU180	Primary polyurethane belt cleaner	60’’(1500)	1600	90’’(2286)	250
DB-HPU200	Primary polyurethane belt cleaner	66’’(1650)	1800	96’’(2438)	250
DB-HPU220	Primary polyurethane belt cleaner	72’’(1800)	2000	102’’(2591)	250

Product NO	Model	Belt Width (mm)	L1	L3	H
DB-PPU50	Secondary polyurethane belt cleaner	18’’(450)	400	48’’(1912)	145
DB-PPU65	Secondary polyurethane belt cleaner	24’’(600)	500	54’’(1372)	145
DB-PPU80	Secondary polyurethane belt cleaner	30’’(750)	600	60’’(1524)	145
DB-PPU100	Secondary polyurethane belt cleaner	36’’(900)	800	66’’(1676)	145
DB-PPU120	Secondary polyurethane belt cleaner	42’’(1050)	1000	72’’(1829)	145
DB-PPU140	Secondary polyurethane belt cleaner	48’’(1200)	1200	78’’(1981)	145
DB-PPU160	Secondary polyurethane belt cleaner	54’’(1350)	1400	84’’(2134)	145
DB-PPU180	Secondary polyurethane belt cleaner	60’’(1500)	1600	90’’(2286)	145
DB-PPU200	Secondary polyurethane belt cleaner	66’’(1650)	1800	96’’(2438)	145

V Plow Belt Cleaner scrapers

Model(DB-BC)	Belt Width(mm)	L1	L2	H(mm)
DB-BC-50	18’’(450)	322	1000	180/250
DB-BC-65	24’’(600)	395	1000	180/250
DB-BC-80	30’’(750)	460	1300	180/250
DB-BC-100	36’’(900)	566	1500	180/250
DB-BC-120	42’’(1050)	672	1700	180/250
DB-BC-140	48’’(1200)	772	1900	180/250
DB-BC-160	54’’(1350)	866	2100	180/250
DB-BC-180	60’’(1500)	972	2300	180/250
DB-BC-200	66’’(1650)	1072	2500	180/250
