Conveyor Belt scale weight idler

Conveyor Belt scale weight idler

Series ICS electronic conveyor belt scale is mainly used for weighing material on a moving conveyor belt throughput and consumption rate measurement for production system. Conveyor belt scale is installed under the belt conveyor to make continuous weighing for the conveying material on conveyor belt. It is precise, reliable and can meet the requirements of many harsh environments.
Application: chemicals, coal, ports, fertilizer, stone crusher ,sand, sugar and other industries..Etc.

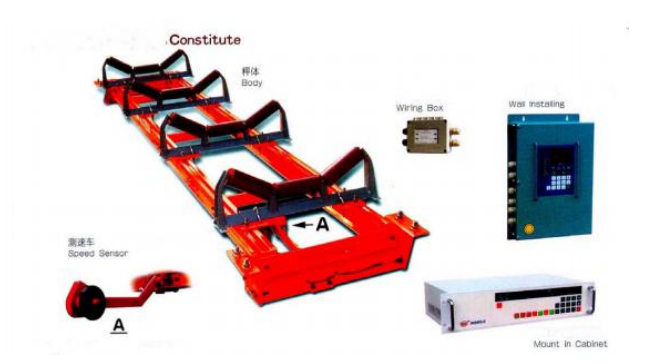

Conveyor belt scale Structure:

Model No.	Belt width (mm)	Accuracy (%)	Conveying capacity (t/h)	inclination of belt conveyor	Belt speed	Weighing roller (Set )	Voltage (V)
ICS-A	400~1800	±0.125	10-3000	≤6°	0.01~4m/s	4	220±10% or customized
ICS-B	400~1800	±0.25	10-3000	≤17°	0.01~4m/s	4
ICS-C	400~1800	±0.5	1-3000	≤17°	0.01~4m/s	2
ICS-D	400~1800	±0.5	10-3000	≤17°	0.01~4m/s	1
ICS-E	400~1800	±0.5	10-3000	≤17°	0.01~4m/s	2
ICS-F	400~1800	±1.0	10-3000	≤17°	0.01~4m/s	1
ICS-G	400~1800	±1.0	10-3000	≤17°	0.01~4m/s	1
