CEMA Standard Conveyor Belt Covers

PC/FRP/Plastic/Polyester Fibreglass/Stainless Steel/Aluminium Galvanized Conveyor Belt Hood Rain Dust Cover

 Conveyor belt covers are manufactured with a variety of optional materials, including galvanized, pre-lacquered and stainless steel, or aluminum and polyester fiberglass at a thickness of 0.6mm.

The belt covers are simple and lightweight to install, requiring few resources, and are also easily maneuvered during maintenance tasks.

Field-tested and proven to withstand the most extreme environments, the durable belt covers help reduce noise and dust emissions. This ensures quarry operators remain compliant with occupational health and safety regulations while reducing the impact on nearby residences and the natural environment.

A range of different cover types is available, including lateral windshields, fireproof systems, and freely accessible, arch-shaped, windowed and skirted covers.

Tool-Free Conveyor Belt covers
A corrosion-free, environmentally friendly, safe, and efficient conveyor belt cover.

After defining the components of primary importance in the project design of a belt conveyor, it is essential to consider other accessories such as covers for the conveyor. Tool-Free Conveyor Belt Covers are corrosion-free, environmentally friendly, safe, and efficient. They protect the conveyor belt and components from all-year-round elements of sun, wind, rain, and snow. The necessity to protect belt conveyors may arise from the weather, the volatile characteristics of the conveyed material, or the type of works plant. For example, extreme temperatures may cause the plant to malfunction or stop. At the same time, powerful wind may move the conveyor belt off-center its natural position causing severe problems to the business or loss of conveyed material.

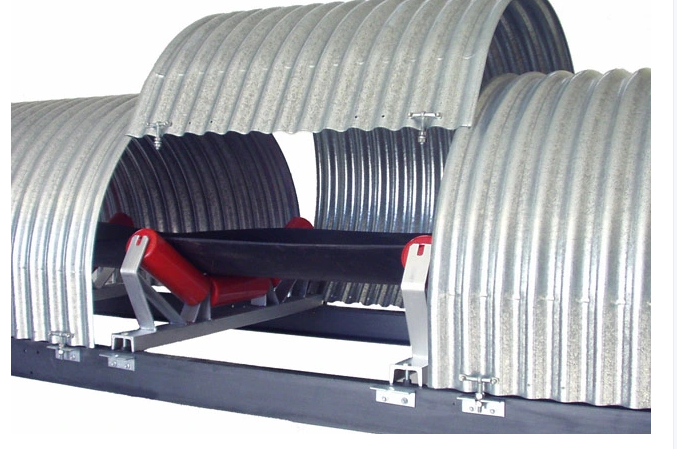

Hoops & Covers
Galvanized or stainless steel hoops with HDPE (white) or Polycarbonate (clear) covers. Full, 1/2, or 3/4 covers in standard 4ft sections.

Corrosion-Free Latches
Accessible from both sides of the conveyor, the anti-seize latches provide easy access. Remove cable clips and raise the cover.

Features
Tool-Free
Anti-seize latches
It opens from both sides
Corrosion-free working hardware
Benefits
Protects belt and components from elements
Increase life-span of belt
Reduces dust and noise
Easy visual inspection of conveyor

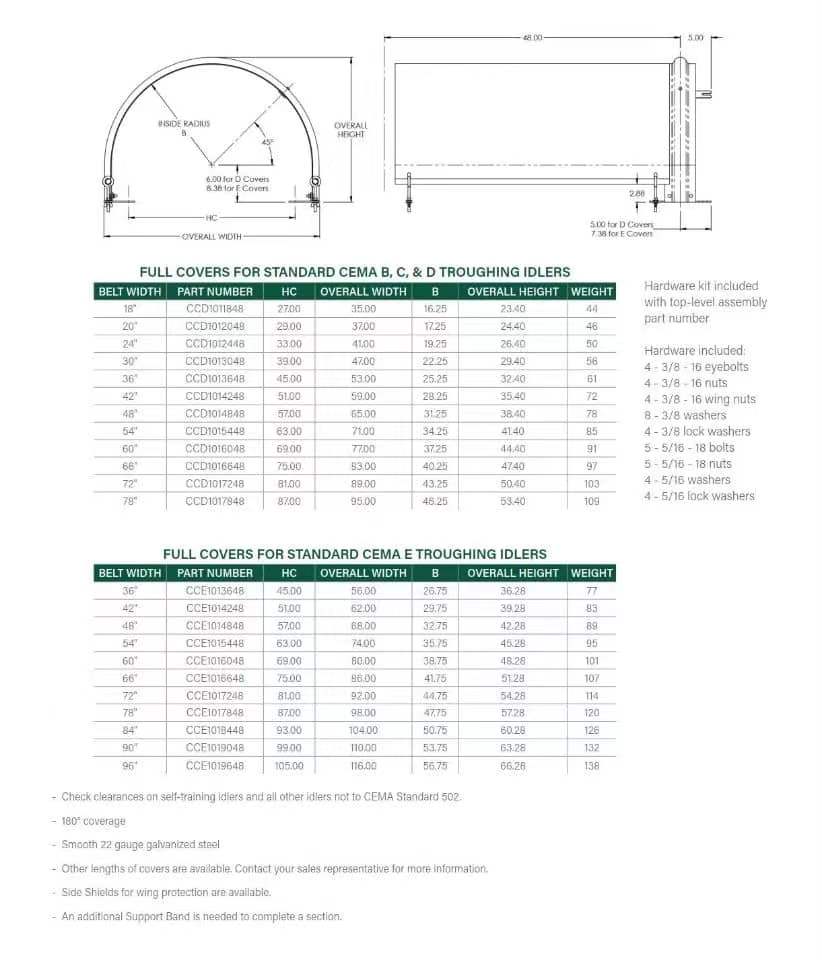

Technical Parameter:

Remark: During installation, should install the operable conveyor cover on the two fixed type conveyor covers near it, the effective length of each conveyor cover is 900mm.
